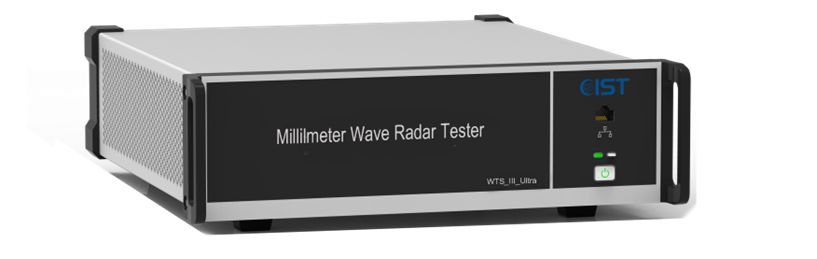

WTS_III_Ultra Millimeter-Wave Radar Tester
WTS_III_Ultra Millimeter-Wave Radar Tester
WTS_III_Ultra millimeter-wave radar tester supports RF/antenna testing, waveform analysis, perception performance evaluation, and anti-jamming testing. It generates multiple interference types including FMCW, PMCW, and clutter, enabling comprehensive end-to-end R&D testing throughout the millimeter-wave radar lifecycle.
Product Overview
WTS_III_Ultra millimeter-wave radar tester supports RF/antenna testing, waveform analysis, perception performance evaluation, and anti-jamming testing. It generates multiple interference types including FMCW, PMCW, and clutter, enabling comprehensive end-to-end R&D testing throughout the millimeter-wave radar lifecycle.
Product Features
※ Multi-Target Simulation
Supports simulation of up to 4 independent targets with configurable range, velocity, and RCS parameters.
※ Interference Signal Generation
Generates CW, Pulse, FMCW, PMCW, and SFMCW waveform types for electronic warfare testing.
※ Radar Signal Analysis
Performs radar signal diagnostics including time-domain analysis, in-band spectrum characterization, and modulation parameter measurements.
※ Self-Calibration Support
Features an optional Calibration Option enabling automated on-site calibration without periodic factory recalibration.
Product Functions
※ Radar Perception Performance Testing
Supports multiple target echo simulation
Supports radar range detection scope/accuracy/resolution testing
Supports radar velocity detection scope/accuracy/resolution testing
Supports radar angular detection scope/accuracy/resolution testing
Supports radar instrumented range testing
Supports radar false alarm rate/missed detection rate/probability of detection testing
※ Radar Anti-Jamming Evaluation
Supports CW, Pulse, FMCW, SFMCW, PMCW, and noise signal types
Supports user-defined waveform editing
※ Radar Signal Analysis
Performs analysis of signal operating bandwidth
Performs analysis of signal power flatness
Performs analysis of signal chirp slope
Performs parametric testing of pulse signals
Supports radar antenna pattern testing
Supports radar EIRP (Effective Isotropic Radiated Power) testing
Performance Indicators
WTS_III_Ultra Performance Indicators | |||
Type | Metrics | Parameters | Options |
RF Performance Metrics | RF Frequency Range | 24~25 GHz | WTS_III_Ultra_LA |
60~64 GHz | WTS_III_Ultra_MA | ||
76~81 GHz | WTS_III_Ultra_HA | ||
92~94 GHz | WTS_III_Ultra_WA | ||
Instantaneous Bandwidth | 1 GHz | WTS_III_Ultra_Bm Base Configuration | |
2 GHz | WTS_III_Ultra_BW01 Bandwidth Extension Option | ||
Power Flatness | ≤ ±1.5 dB, 1 GHz Bandwidth | WTS_III_Ultra_Bm Base Configuration | |
≤ ±2.0 dB, 2 GHz Bandwidth | WTS_III_Ultra_BW01 Bandwidth Extension Option | ||
Spurious Suppression | ≥ 50 dBc | ||
Input Survival Power | ≥ 6 dBm | ||
Maximum Input Power (Antenna Port Excluded) | ≥ -15 dBm | ||
Maximum Output Power (Antenna Port Excluded) | ≥ 15 dBm | ||
Target Simulation
| Target Distance | 0-400m | WTS_III_Ultra_Bm Base Configuration |
0-800m | WTS_III_Ultra_DR01 Range Extension Option | ||
0-1600m | WTS_III_Ultra_DR02 Range Extension Option | ||
Distance Step | 0.01m | ||
Distance Accuracy | ≤ ±0.02m | ||
Number of Channel | 1 | WTS_III_Ultra_Bm Base Configuration | |
2 | WTS_III_Ultra_B01 IF Channel Expansion Option | ||
Target Capacity | 1/Channel | WTS_III_Ultra_Bm Base Configuration | |
2/Channel | WTS_III_Ultra_TN01 Target Capacity Upgrade Option | ||
Velocity Range | ±1000km/h | ||
Velocity Step | ±0.01km/h | ||
Velocity Accuracy | ≤±0.01km/h | ||
RCS Dynamic Range | 100 dBsm | ||
RCS Adjustment Step | 0.1 dB | ||
RCS Dynamic Accuracy | ±0.5 dB | ||
Typical Target RCS | 60~-20 dBsm@100m, Support the Simulation of Target RCS Fluctuation Characteristics | ||
Waveform Analysis | Time-Domain Waveform Analysis Function | WTS_III_Ultra_RSA Option Radar Waveform Analysis Function | |
In-Band Spectrum Analysis Function | |||
Support Real-time Analysis | |||
Support Offline Analysis | |||
Modulation Analysis Function | Pulse Signal Analysis Function | ||
Phase Modulation Analysis Function | |||
FM Slope Analysis Function | |||
FM Bandwidth Analysis Function | |||
Interference Simulation | Interference Signal Types | Noise, CW, Pulse, FMCW, SFMCW, PMCW etc. | WTS_III_Ultra_RSG Implement Interference Simulation Functionality |
Pulse Width | 0.1 μs ~ 10 ms | ||
Pulse Repetition Frequency (PRF) | 1 μs ~ 100 ms | ||
Duty Cycle | 1% ~ 100% | ||
FM Slope | 1 MHz/μs ~ 100 MHz/μs | ||
Maximum Interference Bandwidth | ≥5 GHz | ||
Maximum Interference Power Spectral Density (PSD) | ≥1 million pulses per second | ||
Supports user-defined waveform editing | |||
Product Application
- Millimeter-Wave Radar IC Testing
- Millimeter-Wave Radar R&D Testing
- Millimeter-Wave Radar Calibration Testing
- Vehicle ADAS Hardware-in-the-loop (HIL) Simulation
