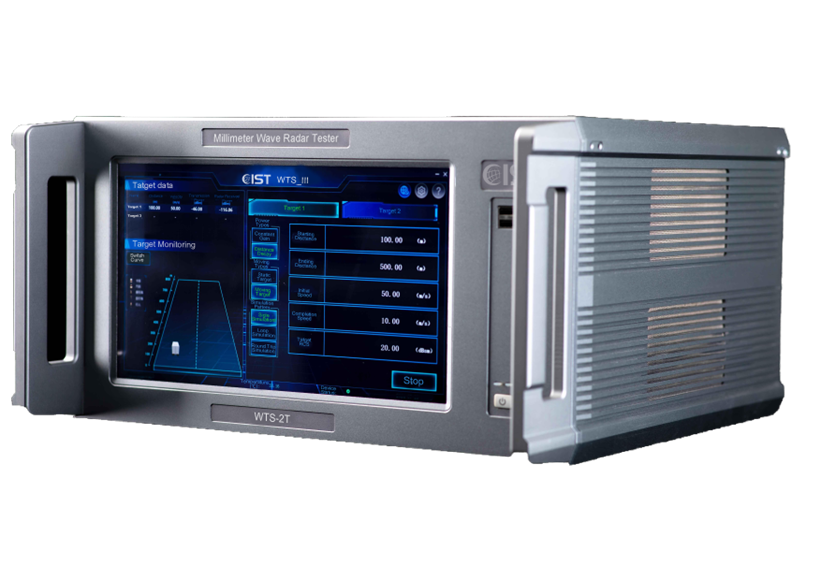

WTS_III Millimeter-Wave Radar Tester

Product Overview

WTS-III Millimeter Wave Radar Tester can simulate multiple independent target echo signals, used for millimeter wave radar perception performance testing and dynamic scene simulation. It supports various operating frequency bands such as 24/60/77/79 GHz, and can be widely applied in fields including millimeter wave radar chip and complete device R&D testing, millimeter wave radar metrology and testing, ADAS system Hardware-in-the-Loop (HIL) simulation testing, as well as Vehicle-in-the-Loop (VIL) simulation testing.

Product Features

The WTS-III covers all millimeter wave radar testing needs throughout all phases, from component R&D to ADAS system implementation and verification.

Product Functions

※ Supports Millimeter-wave Radar Signal Transmission and Reception
Supports multiple frequency bands, including 24 GHz, 60 GHz, 77 GHz, and 79 GHz
Maximum supported instantaneous bandwidth of 5 GHz

※ Simulates Multiple Independent Target Echoes with Different Distance/Velocity/RCS
Supports up to 4 independent target simulations
Capable of simulating stationary, moving, and stationary non-zero velocity targets
Target distance ranges from 3m to 1600m
Target velocity up to ±720km/h
Target RCS dynamic range up to 90 dBsm

※ Supports Millimeter-Wave Radar Chip Performance Testing

※ Supports Millimeter-Wave Radar System Performance Testing

※ Supports Millimeter-Wave Radar Calibration and Measurement

※ Supports ADAS Hardware-in-the-Loop (HIL) Simulation Testing

※ Supports Vehicle-in-the-Loop (VIL) Simulation Testing

Working Principle

The millimeter wave radar tester is a critical technical device for radar system testing and verification. It primarily simulates target echo characteristics to evaluate the performance and accuracy of radar systems.
Its fundamental operating principle involves receiving millimeter wave signals emitted by the radar, processing these signals according to pre-configured target parameters (e.g., distance, velocity, RCS), and then precisely generating simulated echo signals that are transmitted back to the radar system. This enables the simulation of diverse real-world scenarios in laboratory environments, significantly enhancing the development efficiency and safety of radar systems.

Device Software

WTS_III product features built-in operating software, where the software is primarily divided into an operation area and a display area to facilitate parameter configuration and test information viewing. For parameter settings, it simplifies the required configuration items, only a few simple operations are needed to complete testing, significantly improving test efficiency. The display area can show not only target information but also device status and operation logs, enabling rapid monitoring of equipment operating conditions and other information.

Performance Indicators

Configurable Options

Product Application

• Millimeter-Wave Radar IC Testing
• Millimeter-Wave Radar R&D Testing
• Millimeter-Wave Radar Calibration Testing
• Vehicle ADAS Hardware-in-the-loop (HIL) Simulation
