NavS X3004 GNSS Signal Recorder and Replayer
NavS X3004 GNSS Signal Recorder and Replayer

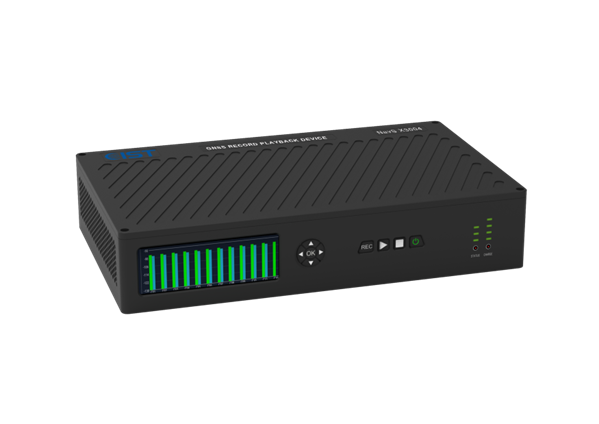

NavS X3004 is a portable GNSS signal recording device featuring full-band signal recording and replay capabilities (supporting BDS, GPS, GLONASS, Galileo, SBAS, NAVIC, and QZSS). It meets the needs for navigation terminal testing, maintenance, troubleshooting, and conformance testing across industries such as automotive manufacturing, low-altitude applications, and industrial research.
Product Overview
NavS X3004 is a portable GNSS signal recording device featuring full-band signal recording and replay capabilities (supporting BDS, GPS, GLONASS, Galileo, SBAS, NAVIC, and QZSS). It meets the needs for navigation terminal testing, maintenance, troubleshooting, and conformance testing across industries such as automotive manufacturing, low-altitude applications, and industrial research.
Product Features
Flexible Multi-Channel Recording
3 independent RF channels support simultaneous recording of GNSS signals across different frequency bands
Capable of capturing real-world signals (in both stationary and mobile scenarios) or signals from standard GNSS simulatorsSynchronous Data Recording
Records standard serial port data synchronously with GNSS signal recordingConvenient Data Management & Control
Supports data import/export via USB or Ethernet port
Enables remote control via EthernetDiverse Application Scenarios
Meets requirements for navigation terminal testing, maintenance, and conformance testing across industries including automotive manufacturing, low-altitude applications, and industrial R&D
Product Functions
Supports full-band navigation constellation signal recording and playback
Supports 3-channel simultaneous recording with independently adjustable power per channel
Supports synchronous data recording including: RS232 channels, digital channels, and CAN channels
Supports standard serial data recording including: differential data, INS data, and serial timing data
Integrated GNSS signal monitoring module for real-time signal status observation
Remote control via Ethernet
Data import/export via USB/Ethernet port
Pre-installed 8TB HDD for expanded storage capacity
Built-in battery with up to 2 hours of operation
Physical keys for simple operation
LCD display graphically shows satellite PRN and C/N₀ etc.
Working Principle
The GNSS Signal Recorder and Replayer (NavS X3004) supports two recording scenarios: recording live navigation signals from real-world environments for playback, and recording signals from standard GNSS simulators for playback. Live environment signals are captured via receiving antenna, while simulator signals can be recorded either through an antenna or via direct cable connection.
Performance Indicators
NavS X3004 Performance Indicators | ||
Metrics | Parameters | Options |
Frequency Band | 1.5 GHz Frequency Band: BDS: B1; GPS: L1; GLONASS: L1; Galileo: E1; QZSS: L1; SBAS: BDSBAS, WAAS, EGNOS | NavS X3004_F1 Frequency Band Option |
1.2 GHz Frequency Band: BDS: B3; GPS: L2, GLONASS: L2; Galileo: E6; QZSS: L2 | NavS X3004_F2 Frequency Band Option | |
1.1 GHz Frequency Band: BDS: B2; GPS: L5; GLONASS: L3; Galileo: E5; QZSS: L5; NAVIC: L5; SBAS: BDSBAS, WAAS, EGNOS | NavS X3004_F3 Frequency Band Option | |
Recording Channel | 3 | NavS X3004 Basic Configuration
|
Playback Channel | 3 | |
Input Signal Power | -90 dBm ~ -20 dBm | |
Channel Gain | 20 dB ~ 70 dB | |
Quantization Bits | 1-bit, 2-bit, 4-bit, 8-bit, 16-bit (User-Definable) | |
Recorded Signal Bandwidth | 40 MHz | |
Output Signal Power | -90 dBm ~ 0 dBm | |
Power Adjustment Step | 1 dB | |
In-band Spurious Emissions | ≤ -45 dBc | |
Harmonic Suppression | ≤ -40 dBc | |
10 MHz Clock Signal | Input Amplitude 7 dBm ~ 10 dBm | |
Output Amplitude 10±1 dBm | ||
Signal Impedance 50±10 Ω | ||
Output Frequency Stability ≤5.0×10-8@1s | ||
1 pps Output Signal | Pulse Width: 20 μs ± 1 μs | |
Signal Amplitude: ≥ 3V | ||
Signal Impedance: 50±10 Ω | ||
Storage Performance | Default Configuration with 8TB SSD | |
Storage Duration: ≥ 24h (2-bit, 3 Channels) | ||
Interface | 2 * Can | |
1 * Ethernet Port | ||
1 * RS232 | ||
4 * Digital Interface | ||
1 * 10 MHz Output SMA | ||
1 * 10 MHz Input SMA | ||
1 * 1 PPS Output SMA | ||
1 * RF Output SMA | ||
1 * RF Input SMA | ||
Overall Dimensions | 310mm (L) * 190mm (W) * 60mm (H) | |
Operating Voltage | 200V ~ 240V/AC, 50 Hz ~ 60 Hz (Power Adapter) | |
Battery Runtime | ≥ 2h | |
Total Power Consumption | ≤ 50W | |
Configurable Options
NavS X3004 Configurable Options | ||
Option | Model | Description |
Basic Configuration | NavS X3004_Bm | The main unit’s base configuration supports integration with various frequency options |
Frequency Band | NavS X3004_F1 | Capture and Playback of 1.5 GHz Band Navigation Signals: BDS: B1; GPS: L1; GLONASS: L1; Galileo: E1; QZSS: L1; SBAS: BDSBAS, WAAS, EGNOS |
NavS X3004_F2 | Capture and Playback of 1.2 GHz Band Navigation Signals: BDS: B3; GPS: L2, GLONASS: L2; Galileo: E6; QZSS: L2 | |
NavS X3004_F3 | Capture and Playback of 1.1 GHz Band Navigation Signals: BDS: B2; GPS: L5; GLONASS: L3; Galileo: E5; QZSS: L5; NAVIC: L5; SBAS: BDSBAS, WAAS, EGNOS | |
Product Applications
- Automotive Navigation Terminal Production Line Testing
- Low-Altitude Navigation Terminal Production Line Testing
- Navigation Module/Chip Manufacturing Test
- Navigation Module/Chip Manufacturing Test
