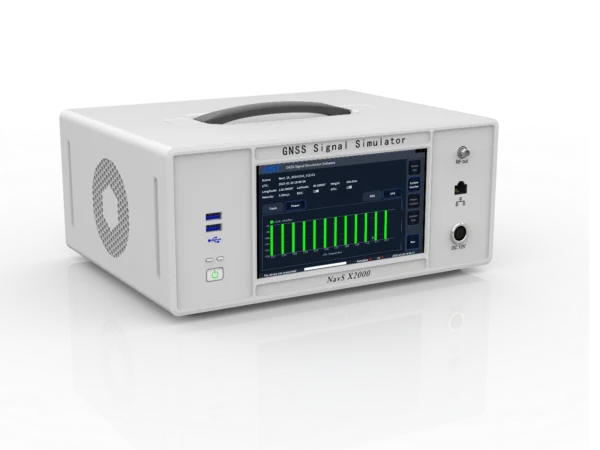

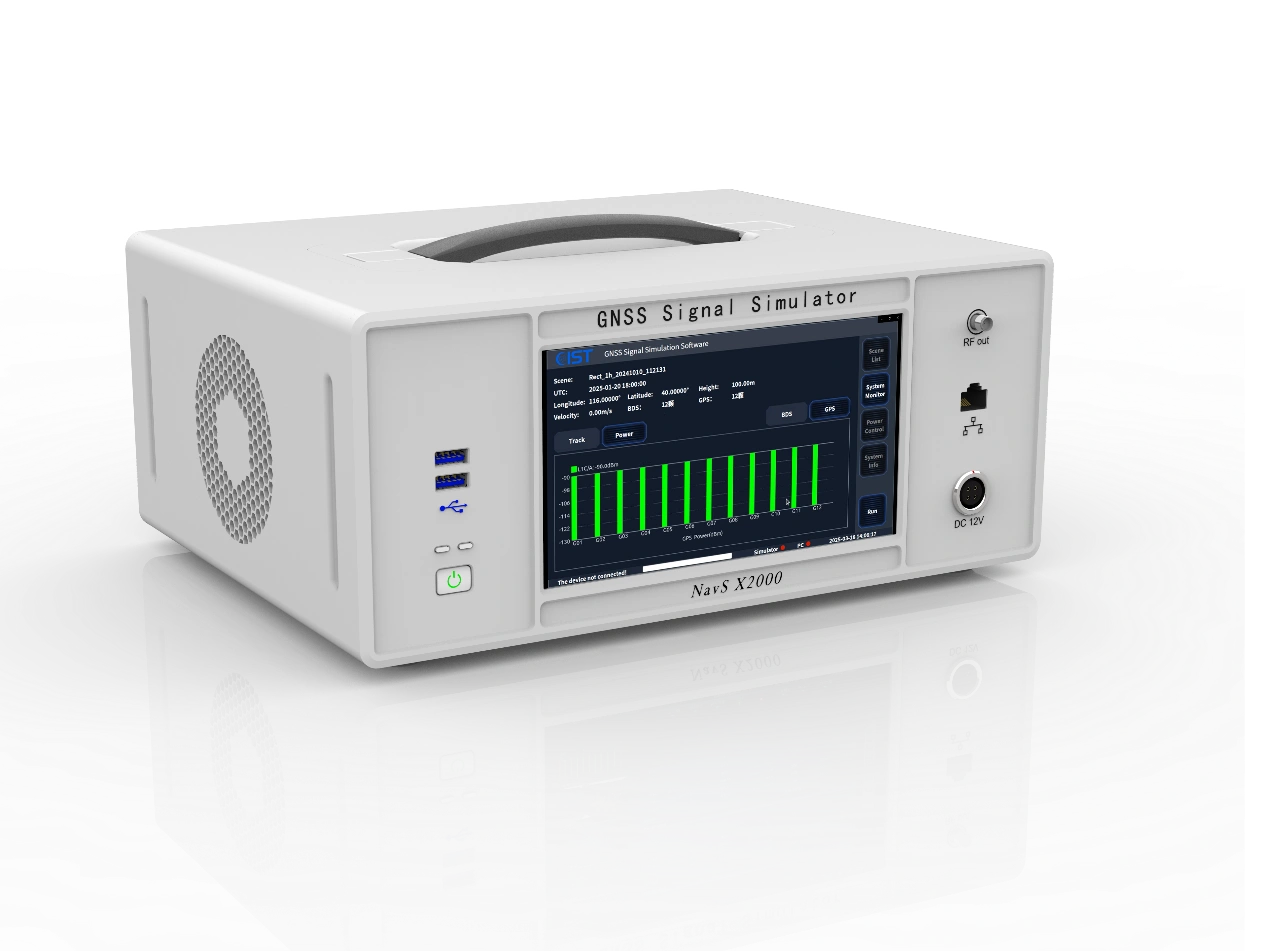

NavS X2000 Satellite Navigation Signal Simulator
NavS X2000 Satellite Navigation Signal Simulator
The NavS X2000 is also suitable for fault detection and consistency testing of navigation terminals. Compared to traditional testing methods, the use of a satellite navigation signal simulator ensures that each test scenario and satellite constellation remains consistent, meeting the needs for fault detection and consistency testing. It can be applied to navigation terminal testing in industries such as automotive, maritime, and aerospace.
Product Overview
The NavS X2000 is also suitable for fault detection and consistency testing of navigation terminals. Compared to traditional testing methods, the use of a satellite navigation signal simulator ensures that each test scenario and satellite constellation remains consistent, meeting the needs for fault detection and consistency testing. It can be applied to navigation terminal testing in industries such as automotive, maritime, and aerospace.
Product Features
- Customizable test scenarios:different static and dynamic test scenarios can be constructed based on user requirements. The date, time (which can also be automatically set to the current time), and trajectory parameters of the test scenarios are all configurable by the user. Additionally, typical trajectory models are provided for user use. Multiple comprehensive tests can be conducted on navigation terminals across different scenarios.
- Capability for continuous long-duration operation:based on a powerful software platform, constellation simulation algorithms and trajectory models are embedded to generate simulation data outputs. Coupled with a stable and reliable hardware platform, it ensures the continuous output of navigation signals, enabling operation for over two months and meeting the long-term reliability testing requirements for navigation terminals.
Performance Indicators
NavS X2000 Technical Parameters | ||
Constellation | Supports BDS 、GPS、GLONASS、Galileo constellation simulation functions | |
Frequency Simulation Capability | BDS | B1I、B3I、B1C、B2a、B2b |
GPS | L1C/A、L1C、L2C、L5 | |
GLONASS | L1 C/A 、L2 C/A 、L3OC | |
Galileo | E1 、E5a 、E5b | |
Signal Power | Power Range | – 90dBm~130dBm |
Signal Quality | Harmonic Power | ≤-40dBc |
Clutter Power | ≤-50dBc | |
Signal Dynamics | Simulated Elevation | ≥8000Km |
Speed | 0~12000m/s | |
Acceleration | 0~1000m/s2 | |
Jerk | 0~1000m/s3 | |
Other Specifications | Quantization Bits | 16bit |
Data Format | Real signal | |
Satellite Count | Visible when the elevation angle ＞ 5° | |
Playback Duration | ≥1440 hrs（last over two months） | |
Custom Test Scenarios | Constellation simulation, trajectory simulation, simulation time setting | |
Battery Pack | Removable battery pack (supports continuous operation for 2 hours) | |
Storage | 32GB（expandable） | |
Reference Oscillator | 10.23MHz Temperature-Controlled Crystal Oscillator（OCXO） +/- 0.3ppm | |
Interface | RF-OUT | 1，SMA，Navigation signal output |
Network Interface | RJ45*1，Remote control | |
Power Interface | DC12V，DC12V input | |
USB | 2，File access and mouse/keyboard interface | |
Reserved | 4，SMA，Reserved interfaces | |
Electrical/Dimensions | Operating Voltage | AC220V |
Power Consumption | ≤30W | |
Dimensions | 300 mm (W) x 142 mm (H) x 229.5 mm (D) | |
Weight | 5.8Kg (typical weight) | |
NavS X2000 Configuration | ||
Host Configuration | Satellite Navigation Signal Simulator Host | NavS X2000-BP |
Test Accessories | Adapter | 1，AC220 to DC12V |
RF Cable | 1m | |
Network Cable | 1m | |
Documentation Configuration | Certificate of Compliance | 1 |
User Manual | 1 | |
Test Report | 1 | |
Accessories: 4 Test Scenarios | Static Scenario | t = 60*24h |
Dynamic Scenario | Rounded rectangle，t = 60*24h | |
Dynamic Scenario | Rounded rectangle，t =1h | |
Dynamic Scenario | Linear acceleration，t =1h | |
NavS X2000 Optional Accessories | |||
Frequency Point Options | Single Frequency | Supports BDS: B1I, B3I, B1C, B2a, B2b; GPS: L1C/A, L1C, L2C, L5 single frequency output | NavS X2000-1F-00 |
Dual Frequency | BDS: B1I, B3I; GPS: L1C/A any two frequency combination output | NavS X2000-2F-00 | |
BDS: B1C, B2a, B2b any two frequency combination output | NavS X2000-2F-01 | ||
GPS: L1C, L2C, L5 any two frequency combination output | NavS X2000-2F-02 | ||
Triple Frequency | BDS：B1I、B3I；GPS：L1C/A | NavS X2000-3F-00 | |
BDS：B1C、B2a、B2b | NavS X2000-3F-01 | ||
GPS：L1C、L2C、L5 | NavS X2000-3F-02 | ||
Customization | 1. Supports up to 3 frequency point combinations per device 2. Available frequencies：BDS：B1I、B3I、B1C、B2a、B2b；GPS：L1C/A、L1C、L2C、L5；GLONASS：L1 C/A 、L2 C/A 、L3OC；Galileo：E1 、E5a 、E5b | NavS X2000-3C | |
Trajectory Editing Software Options | This accessory provides trajectory editing software for testing scenarios with the following features: • Supports constellation simulation • Allows editing of time and duration • Customizable trajectory options • Provides 9 classic trajectory models (rounded rectangle, circular, 8-shaped, etc.) • Supports importing trajectory files (CSV and NMEA formats) | NavS X2000-SG | |
Wireless Testing Accessory | This accessory enables air-feed testing and includes three main components: power amplifier, transmitting antenna, and RF cable. | NavS X2000-ANT | |
Product Application
- Navigation testing in automotive, communications, satellite signals, and other fields
- R&D and production of satellite navigation terminals
- Mass testing of satellite navigation terminal production lines
- SignalPro software support for usage
