BSIS403T3 Lateral Blind Radar Specification
BSIS403T3 Lateral Blind Radar Specification
BSIS403T3 Lateral Blind Radar is a 77GHz Vehicle millimeter-wave radar sensor independently developed by CIST Electronics GmbH., featuring both functional-level and target-level detection capabilities. It is designed for target-level detection and meets the requirements for medium/large commercial vehicle Blind Spot Information Systems (BSIS) under UN R151 regulations. Installed on both sides of the vehicle, it achieves high accuracy and high-resolution perception of pedestrians, bicycles, and other targets within a ±90° Field of View (FoV).
Product Description – Product Overview
BSIS403T3 Lateral Blind Radar is a 77GHz Vehicle millimeter-wave radar sensor independently developed by CIST Electronics GmbH., featuring both functional-level and target-level detection capabilities. It is designed for target-level detection and meets the requirements for medium/large commercial vehicle Blind Spot Information Systems (BSIS) under UN R151 regulations. Installed on both sides of the vehicle, it achieves high accuracy and high-resolution perception of pedestrians, bicycles, and other targets within a ±90° Field of View (FoV).
Product Description – Application Scenarios
- Commercial Vehicle Lateral Blind Area Target Detection
- Detection of multiple types of targets (pedestrians, bicycles, motorcycles, small vehicles, large vehicles)
- Commercial vehicle target detection in bad weather (rain, snow, fog)
- Commercial vehicle target detection in complex environments (park roads, intersections)
Product Description – Product Advantage
- Function: Blind Spot Information System (BSIS)
- Achieves target detection within a ±90° Field of View (FoV)
- Equipped with a system self-test function
- Support UDS diagnostics and BootLoader flashing
- Support CAN/CANFD OTA updates
- Support network wake-up
- Complies with UN R151 standards
- Compact and lightweight, easy to install
- Unaffected by harsh conditions such as lighting and dust
- Compliant with CE, E/e-Mark, and other regulations
Additional Information
Please contact our company for any other matters that have not been detailed.
Technical Specifications – Measurement Performance
| Performance Parameters | Specifications |
| Range Measurement Range | 0.3m~40m |
| Range Accuracy | ±0.1m |
| Range Resolution | 0.2m |
| FoV | ±90°(Azimuth) ±10°(Elevation) |
| Angle Accuracy | ±0.5°（Azimuth） |
| Angle Resolution | 9°（Azimuth） |
| Speed Measurement Range | ±30m/s |
| Speed Accuracy | ±0.1m/s |
| Speed Resolution | 0.27m/s |
| Data Refresh Rate | 60ms |
| Number of Trackable Targets | 64 |
Technical Specifications – Operating Conditions
| Performance Parameters | Specifications |
| Operating Frequency | 76GHz ~ 78GHz |
| Power Supply Range | 9~36V |
| Static Current | ＜1mA |
| Total Power Consumption | ≤5.3W |
| Operating Temperature | -40℃~+85℃ |
| Storage Temperature | -40℃~+90℃ |
| Relative Humidity | 5%~90%RH |
| Protection Grade | IP6K9K (Dust, High-pressure Cleanliness) IP6K7 (Underwater at 100cm) Ice Water Impact Test |
| Shock | 50G |
| Vibration | ISO 16750-3 |
| EMC standards | CISPR25-Class3 |
| Lifespan | 250000km or 10years |
Technical Specifications – Casing
| Parameter | Specification |
| Dimension(H*W*D) | 125*99.7*29.5（Overall） 99.7*99.7*29.5（Main Body） |
| Weight | 250g（including wiring harness） |
| Material (Front Shell, Rear Shell) | Rear Case: Aluminum Alloy Front Case: PBT-GF30 |
| Color (Front Shell, Rear Shell) | Rear Case: Gray Front Case: Black |
| Mounting Method | Bolt fixation |
| Port | YAZAKI：7282-8856-30 |
Technical Specifications – Connection
| Parameter | Specification |
| Bus Interface | 1x CAN（Configurable baud rate） 1x CAN FD（Configurable baud rate） |
| Interface Orientation | Single mounting hole oriented towards the ground |

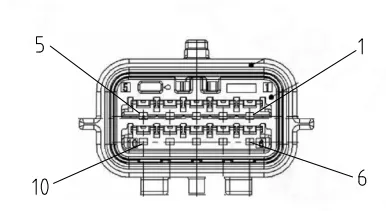

Technical Specifications – Interface Signal Definition
| Pin | Definition | Meaning |
| 1 | IG | Ignition Power |
| 2 | GND | Ground |
| 3 | LED | LED Drive |
| 4 | PCAN-L | Private CAN Low |
| 5 | PCAN-H | Private CAN High |
| 6 | VBAT | Constant Power |
| 7 | NC | Reserved |
| 8 | BUZZER | Buzzer Drive |
| 9 | VCAN_L | Public CAN Low |
| 10 | VCAN_H | Public CAN High |

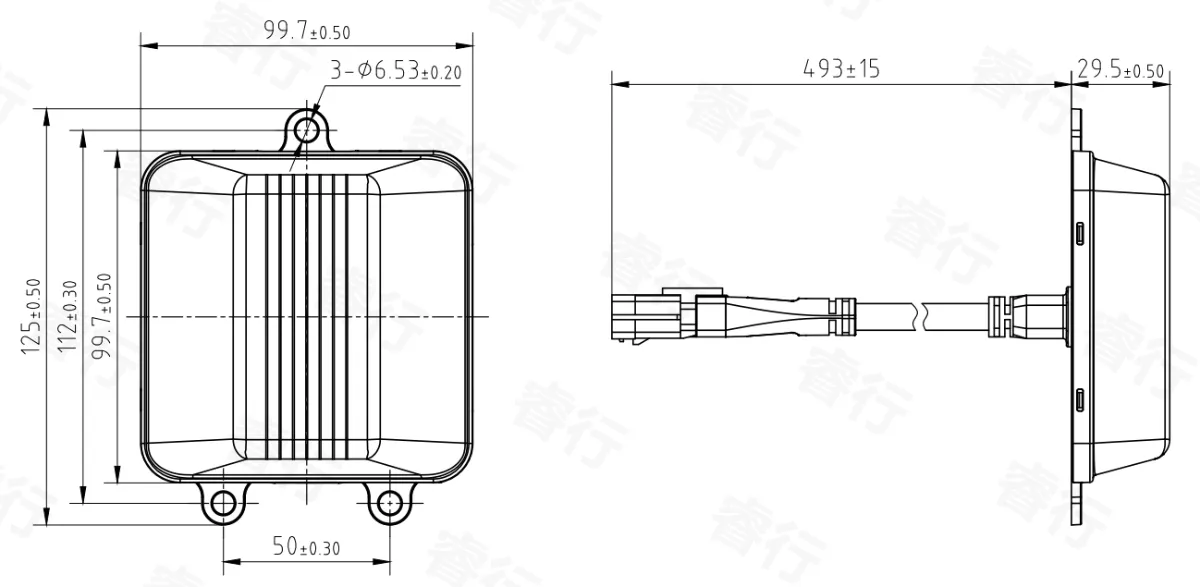

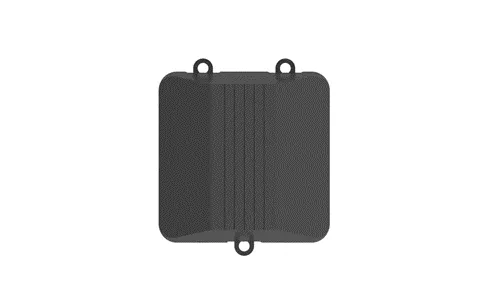

Technical Specifications – Appearance
Technical Specifications – Installation Instructions

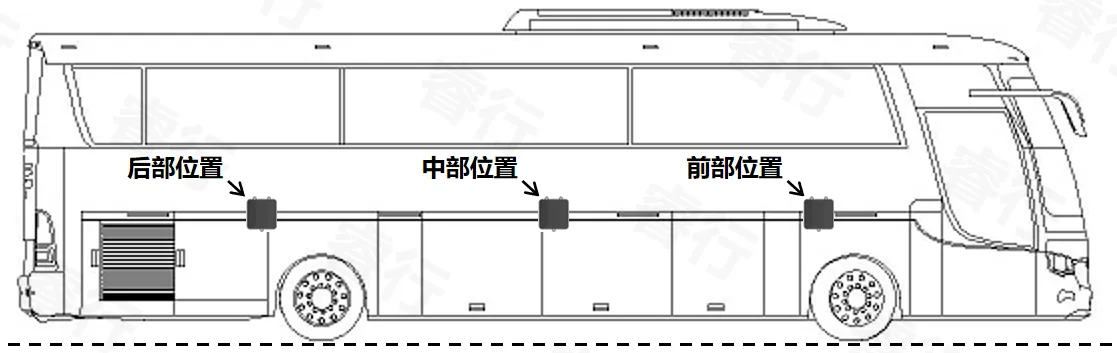

The allowable installation area of the radar on the vehicle is shown in the diagram below. The transmitting side of the radar should faces out, with the connector on the back facing inward. The radar can be installed at the front, middle, or rear side positions of the vehicle to cover the areas required by the BSIS system, allowing for flexibility in choosing the final installation location based on specific needs.
Radar Installation Height: 600mm to 1000mm
Installation position: left and right sides of the body, can be installed inside and outside the covering
Installation Yaw Angle: Radar normal direction perpendicular to the vehicle body, with an error tolerance of ±3°
Installation Pitch Angle: Vertical to the ground, with an error tolerance of ±3°
Within a horizontal FOV of 180° and a vertical FOV of 60° from the radar center: No metal obstructions, no obstructions with inconsistent material thickness.

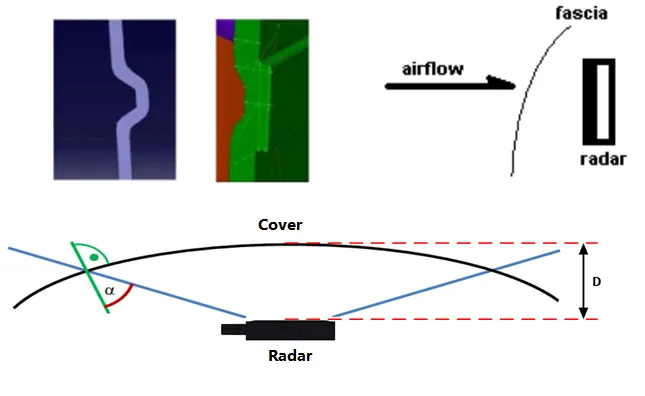

Technical Specifications – Secondary Surface (Radome)
The shape should be as flat as possible, with uniform thickness, and no sharp structures
Hydrophobic
The angle α between the radar beam and the cover part is less than or equal to 70 degrees
Radar and cover distance D > 5mm
The covers are made of plastic material and should not contain carbon fiber or metal
Recommended materials and thickness for covers (can be an integer multiple of the values in the table)
| Material | Thickness（mm） |
| ABS | 3.51 |
| PP | 4.04 |
| PA | 3.74 |
| PC | 3.71 |
| PC-PBT | 3.64 |
Product Description – Application Scenarios
- Commercial Vehicle Lateral Blind Area Target Detection
- Detection of multiple types of targets (pedestrians, bicycles, motorcycles, small vehicles, large vehicles)
- Commercial vehicle target detection in bad weather (rain, snow, fog)
- Commercial vehicle target detection in complex environments (park roads, intersections)
